PTFE Pleated Filter Cartridge
OVERVIEW
The PTFE pleated filter cartridge is a high-performance filtration solution engineered for demanding applications requiring chemical resistance, thermal stability, and absolute cleanliness. Made using hydrophobic polytetrafluoroethylene (PTFE) membrane media, this cartridge offers superior performance in filtering corrosive gases, aggressive solvents, ultrapure water, and sterile air. It is widely used in the pharmaceutical, biotech, chemical, and semiconductor industries where reliability and sterility are critical.
PTFE (Polytetrafluoroethylene) is known for its extreme chemical inertness, hydrophobic nature, and high thermal resistance. When this material is used in pleated membrane cartridges, it delivers a unique combination of features that ordinary filter media like polypropylene or PES cannot match.
Unlike traditional filters that degrade in contact with aggressive fluids, PTFE pleated filters remain stable and effective, ensuring consistent filtration in the harshest environments. Their hydrophobic property also makes them ideal for air and gas filtration, especially in sterile or high-purity applications.

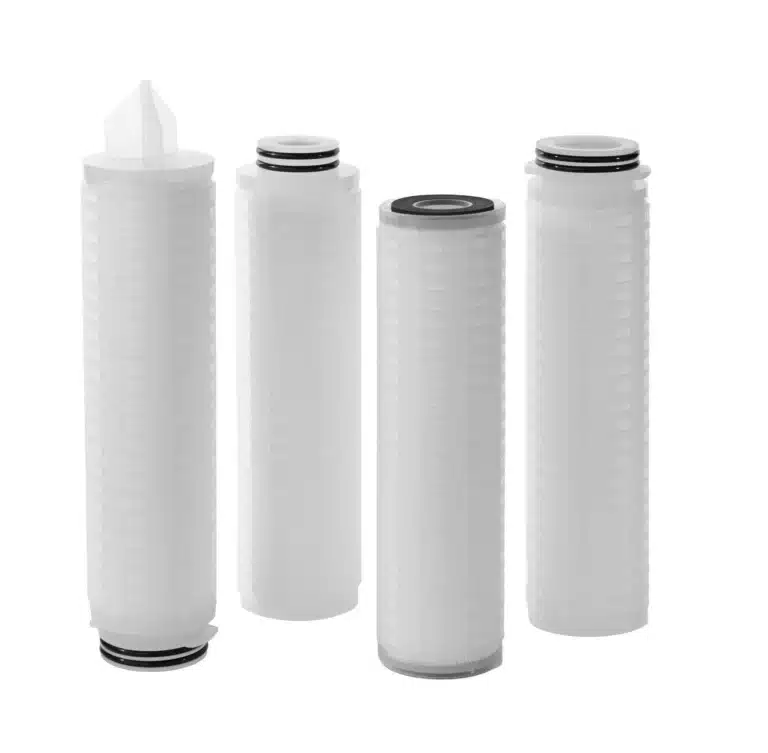

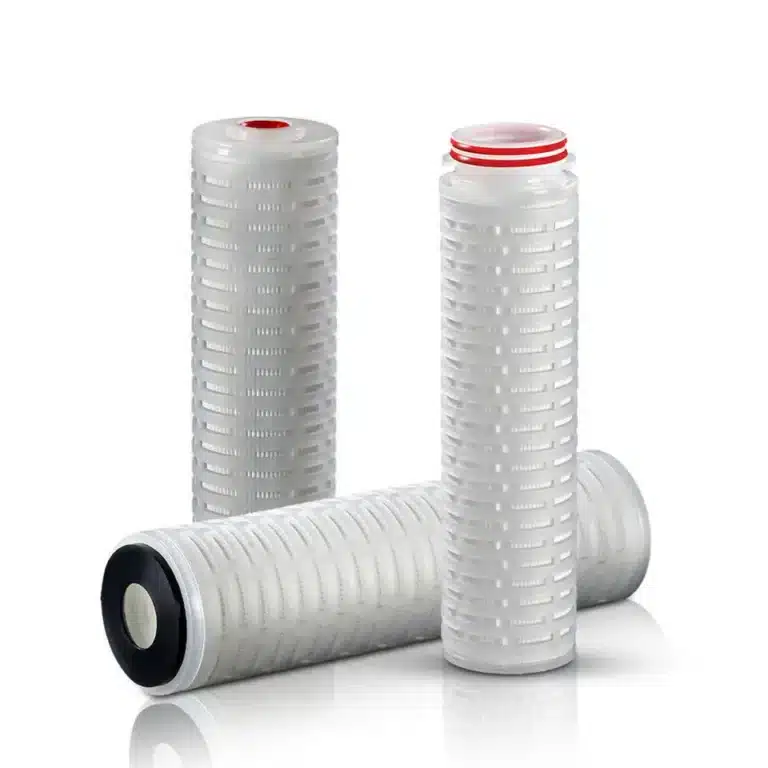

PTFE Membrane Pleated Filter Cartridges Gallery
PTFE Pleated Filter Cartridges Highlight
✅ Broad Chemical Compatibility：The PTFE membrane resists degradation from acids, bases, oxidizers, and most organic solvents. This allows the cartridge to be used with confidence in highly corrosive chemical filtration
✅ Hydrophobic Membrane for Air and Gas Filtration：The naturally hydrophobic structure of PTFE prevents wetting, making it the optimal choice for sterile gas and vent filtration, including in fermenters, air tanks, and bioreactors.
✅ High Temperature Endurance：Our PTFE cartridges can operate continuously at temperatures up to 120°C (248°F), with sterilization options including autoclaving and steam-in-place (SIP) procedures.
✅ Absolute Rated Filtration：Available in micron ratings as low as 0.1 µm, these filters provide absolute particle retention, ensuring no compromise on critical process purity or sterility.
✅ Low Extractables and Particle Shedding：The cartridge materials are designed and manufactured to minimize extractables and prevent particle shedding, which is vital in pharmaceutical and microelectronics applications.
These cartridges are resistant to:
Acids
Alkalis
Organic solvents
Industrial process fluids
1. Pharmaceutical and Biotechnology
PTFE filter cartridges are extensively used in the production of sterile injectable drugs, vaccines, and culture media. They are perfect for filtering aggressive cleaning agents, solvents, and ensuring contaminant-free air in aseptic processing environments.
2. Semiconductor Manufacturing
In microelectronics and semiconductor plants, ultrapure water and gas purity are critical. The PTFE pleated filter’s ultra-clean and non-shedding construction makes it suitable for high-purity DI water and chemical filtration.
3. Chemical Industry
Ideal for use in acid recovery, solvent filtration, and chemical polishing, these filters maintain integrity even in aggressive conditions where other filter media break down.
4. Food and Beverage
Used in critical gas and compressed air filtration to maintain product purity and safety. PTFE cartridges are also applied in venting tanks and fermenters to protect the process from microbial contamination.
5. Air and Gas Sterilization
In sterile processing facilities and cleanrooms, hydrophobic PTFE filters are essential for bacteria and virus retention in compressed air, CO₂, and other process gases.
We offer a variety of lengths and end cap types:
Lengths: 10″, 20″, 30″, 40″
End Caps: DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin
These standard configurations ensure compatibility with most filter housings used globally.
Technical Specifications for PTFE Pleated Filter Cartridge
| Specification | Detail |
|---|---|
| Filter Media | Hydrophobic PTFE Membrane |
| Support Layers | Polypropylene (PP) or PTFE |
| Micron Ratings | 0.1, 0.2, 0.45, 1.0 µm |
| Outer Diameter | 2.7 inches (69 mm) |
| Lengths Available | 10″, 20″, 30″, 40″ |
| End Cap Configurations | DOE, 222/Flat, 222/Fin, 226/Fin |
| Core & Cage Materials | Polypropylene or Stainless Steel |
| Operating Temperature | Up to 120°C (248°F) |
| Max Differential Pressure | 4.0 bar at 25°C (58 psi) |
| Sterilization Methods | Autoclave, SIP, Hot Water (121°C) |
| Compliance Standards | FDA 21 CFR, USP Class VI |
Installation and Maintenance Tips
Correct Orientation: Install with the flow direction as marked on the cartridge to ensure proper filtration performance.
Steam Sterilization: Cartridges can be steam sterilized up to 121°C for 30-minute cycles, multiple times.
Integrity Testing: Perform bubble point or diffusion testing to verify membrane integrity, especially in pharmaceutical and sterile applications.
Replacement Guidelines: Replace when pressure drop exceeds 2.5 bar or based on routine system validation procedures.
Storage: Keep in original packaging in a dry, clean environment away from UV and heat sources.
Why Choose Our PTFE Pleated Filter Cartridges?
✔ Precision Manufacturing
Each cartridge is produced under ISO-certified facilities with full traceability, ensuring consistent quality and performance across batches.
✔ Customization Options
We provide customized sizes, end cap designs, micron ratings, and support materials based on your system configuration and process needs.
✔ Regulatory Compliance
Our cartridges comply with FDA 21 CFR, USP Class VI, and ISO 11137 guidelines, making them suitable for regulated industries including pharmaceuticals and food processing.
✔ Competitive Global Supply
With efficient production and inventory management, we offer rapid delivery and attractive pricing for bulk or small orders, with global logistics support.
Frequently Asked Questions (FAQs)
Q1: Can PTFE pleated filter cartridge be used for both liquid and gas filtration?
A1: Yes. The hydrophobic nature of PTFE makes it ideal for gas filtration, while its chemical resistance also suits liquid processes involving aggressive media.
Q2: Are these filters sterilizable?
A2: Absolutely. They can be autoclaved, steam-sterilized, or sanitized using hot water without degradation.
Q3: What’s the typical service life of a PTFE pleated filter cartridge?
A3: It depends on the application, but under normal conditions, the cartridge offers a long service life with high throughput and minimal fouling.
Q4: Do you offer validation data?
A4: Yes, we provide full validation documentation including extractables, bacteria retention (e.g., Brevundimonas diminuta), and integrity test results on request.
Ordering Information
To place an order or request a free technical consultation, please contact our team. We’ll assist you in choosing the correct configuration and provide detailed data sheets and compliance certifications.
Conclusion
The PTFE pleated filter cartridge is a trusted solution for industries where fluid or gas purity is non-negotiable. Offering unmatched chemical compatibility, thermal resistance, and filtration precision, it’s an indispensable tool in sterile and high-purity environments. By choosing our PTFE cartridges, you’re investing in long-term reliability, operational efficiency, and process integrity.
Installation and Maintenance Tips
Correct Orientation: Install with the flow direction as marked on the cartridge to ensure proper filtration performance.
Steam Sterilization: Cartridges can be steam sterilized up to 121°C for 30-minute cycles, multiple times.
Integrity Testing: Perform bubble point or diffusion testing to verify membrane integrity, especially in pharmaceutical and sterile applications.
Replacement Guidelines: Replace when pressure drop exceeds 2.5 bar or based on routine system validation procedures.
Storage: Keep in original packaging in a dry, clean environment away from UV and heat sources.
Why Choose Our PTFE Pleated Filter Cartridges?
✔ Precision Manufacturing
Each cartridge is produced under ISO-certified facilities with full traceability, ensuring consistent quality and performance across batches.
✔ Customization Options
We provide customized sizes, end cap designs, micron ratings, and support materials based on your system configuration and process needs.
✔ Regulatory Compliance
Our cartridges comply with FDA 21 CFR, USP Class VI, and ISO 11137 guidelines, making them suitable for regulated industries including pharmaceuticals and food processing.
✔ Competitive Global Supply
With efficient production and inventory management, we offer rapid delivery and attractive pricing for bulk or small orders, with global logistics support.
Frequently Asked Questions (FAQs)
Q1: Can PTFE pleated filter cartridges be used for both liquid and gas filtration?
A1: Yes. The hydrophobic nature of PTFE makes it ideal for gas filtration, while its chemical resistance also suits liquid processes involving aggressive media.
Q2: Are these filters sterilizable?
A2: Absolutely. They can be autoclaved, steam-sterilized, or sanitized using hot water without degradation.
Q3: What’s the typical service life of a PTFE filter cartridge?
A3: It depends on the application, but under normal conditions, the cartridge offers a long service life with high throughput and minimal fouling.
Q4: Do you offer validation data?
A4: Yes, we provide full validation documentation including extractables, bacteria retention (e.g., Brevundimonas diminuta), and integrity test results on request.
Ordering Information
To place an order or request a free technical consultation, please contact our team. We’ll assist you in choosing the correct configuration and provide detailed data sheets and compliance certifications.
Conclusion
The PTFE pleated filter cartridge is a trusted solution for industries where fluid or gas purity is non-negotiable. Offering unmatched chemical compatibility, thermal resistance, and filtration precision, it’s an indispensable tool in sterile and high-purity environments. By choosing our PTFE cartridges, you’re investing in long-term reliability, operational efficiency, and process integrity.
