Applications of PVDF Pleated Filter Cartridges
High Quality PES Pleated Filter Cartridge Supplier For Your Filtration Solution
INTRODUCTION
PVDF (Polyvinylidene Fluoride) pleated filter cartridges are one of the most advanced and reliable filtration solutions available today. They are widely used across industries that require high chemical resistance, excellent thermal stability, and superior mechanical strength. Thanks to their hydrophobic or hydrophilic surface options, PVDF pleated filters can efficiently filter both liquid and gas streams, making them ideal for pharmaceutical, food, microelectronics, and chemical applications.
The PVDF membrane structure provides low protein binding, high flow rate, and minimal extractables, ensuring consistent filtration quality even in challenging conditions. Compared to other membrane types such as PES, PTFE, or Nylon, PVDF offers an ideal balance between durability and purity—especially for corrosive fluids or sterilization processes involving organic solvents and oxidizing agents.
2. Structural Overview and Working Principle

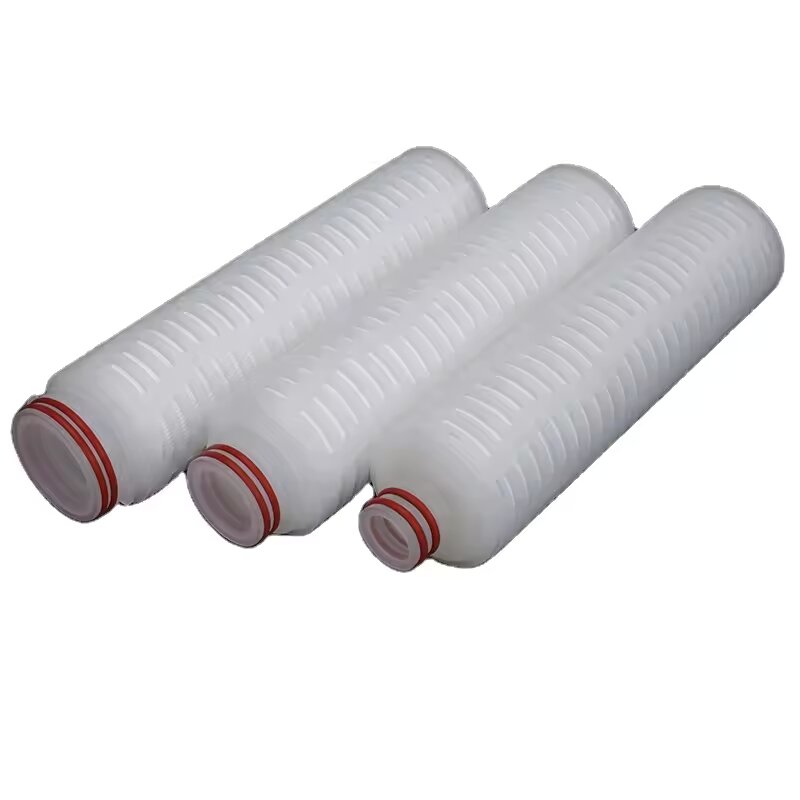

PVDF pleated filter cartridges consist of a PVDF microporous membrane pleated around a polypropylene or PVDF support core, providing a large effective filtration area within a compact design. This pleated configuration maximizes dirt-holding capacity and reduces pressure drop, allowing for longer operational life and higher throughput.
Key Components:
Filter Medium: High-purity PVDF membrane (hydrophobic or hydrophilic)
Support Layers: Polypropylene (PP) or PVDF nonwoven fabric
Core & End Caps: Reinforced PP or PVDF for chemical compatibility
Sealing Method: Thermal bonding without adhesives or surfactants
Working Principle:
The PVDF pleated filter cartridge works through depth and surface filtration mechanisms, effectively trapping particles, colloids, and microorganisms. The hydrophobic type is primarily used for air or gas filtration, while the hydrophilic type is designed for liquid purification applications.
3. Advantages of PVDF Pleated Filter Cartridges
PVDF pleated filters are favored in many industries for their superior material characteristics and process compatibility. Below are some key advantages that distinguish them from other filtration media:
a. Excellent Chemical Resistance
PVDF offers strong resistance to acids, bases, oxidizers, and organic solvents, making it suitable for filtration in harsh chemical environments. It can handle aggressive fluids that would degrade Nylon or PES membranes.
b. High Temperature and Pressure Tolerance
These filters can operate continuously at temperatures up to 85°C–95°C and withstand pressures up to 4 bar, making them suitable for industrial-scale and high-temperature sterilization systems.
c. Low Extractables and High Purity
The PVDF membrane does not release significant organic compounds or additives during operation, maintaining ultrapure filtration suitable for sensitive processes such as pharmaceutical water and semiconductor manufacturing.
d. Hydrophobic and Hydrophilic Options
Hydrophobic PVDF: Ideal for vent and gas filtration to prevent liquid intrusion.
Hydrophilic PVDF: Best for aqueous liquid filtration, providing high flow and low protein binding.
e. Low Protein Binding and Bacterial Retention
The PVDF membrane exhibits minimal interaction with biomolecules, which helps preserve the integrity of biological samples while maintaining strong bacterial and particulate retention efficiency.
f. Long Service Life
With a pleated structure and robust PVDF material, these cartridges offer high dirt-holding capacity, resulting in fewer replacements and lower overall filtration costs.
4. Applications in the Pharmaceutical and Biotech Industry
In the pharmaceutical and biotechnology sectors, maintaining sterile and contaminant-free fluids is essential. PVDF pleated filter cartridges are extensively used in processes that require sterilization, particle retention, and chemical resistance.
Typical Applications:
Sterile air and gas filtration for fermenters and bioreactors
Vent filtration for tanks, vessels, and autoclaves
Filtration of aqueous and solvent-based pharmaceutical solutions
Purification of active pharmaceutical ingredients (API)
Final filtration before filling operations
Advantages in Pharmaceutical Use:
Ensures microbial safety in sterile manufacturing environments
Compatible with CIP (clean-in-place) and SIP (steam-in-place) sterilization cycles
Prevents contamination during formulation and packaging stages
Meets FDA, ISO, and USP Class VI compliance requirements
Hydrophobic PVDF filters are often used for air venting in sterilizers, ensuring no liquid passes through while maintaining sterile airflow. Meanwhile, hydrophilic PVDF variants are ideal for liquid filtration, ensuring purity and low extractables in final drug products.
5. Applications in Food and Beverage Industry
Food and beverage manufacturers must ensure microbiological purity, taste consistency, and chemical safety. PVDF pleated filter cartridges are increasingly being adopted as reliable solutions for both liquid and gas filtration in food production processes.
Common Applications:
Beverage clarification: Wine, beer, juice, and mineral water
Bottled water sterilization: Final filtration before filling
Flavor and enzyme solution filtration
Tank venting and CO₂ filtration
Dairy product processing: Milk and whey filtration
Key Benefits for Food Applications:
Low extractables: Prevents contamination or flavor alteration
High microbial retention: Ensures product sterility without heat treatment
Chemical and thermal resistance: Suitable for hot CIP and SIP cycles
Long operational life: Reduces downtime and replacement costs
PVDF filters can withstand repeated cleaning and sterilization cycles, maintaining stable flow performance and consistent taste quality, which is essential for premium beverage manufacturing.
6. Applications in Microelectronics and Semiconductor Manufacturing
In microelectronics and semiconductor production, even trace levels of contaminants can cause defects, corrosion, or circuit failure. PVDF pleated filter cartridges are used in ultrapure water systems, chemical distribution lines, and gas filtration, where absolute purity is non-negotiable.
Applications Include:
UPW (Ultrapure Water) systems for wafer cleaning and rinsing
Acid and solvent filtration for etching and cleaning processes
Photolithography chemical filtration
Gas venting and air filtration in cleanrooms
Process water polishing
Advantages for Semiconductor Filtration:
Excellent chemical compatibility with acids, bases, and oxidizers
Low metal ion release, preventing circuit contamination
High particle retention (≥99.99%) at submicron levels
High mechanical stability under continuous high flow and pressure
Because of their ultra-low extractables and inert surface, PVDF filters have become an industry standard for semiconductor-grade filtration where fluid purity directly affects device performance.
7. Applications in Chemical and Petrochemical Industries
The chemical and petrochemical sectors involve processing fluids that are highly corrosive or volatile. PVDF pleated filter cartridges are preferred for these operations due to their exceptional chemical resistance and long-term durability.
Common Chemical Applications:
Acid and alkali filtration
Solvent and oxidant purification
Catalyst recovery and fine chemical processing
Filtration of process gases and reactor vents
Purification of monomers and polymers
Advantages in Chemical Environments:
Resistant to chlorinated solvents, nitric acid, and peroxides
Performs reliably in aggressive pH ranges (1–13)
Maintains mechanical strength under continuous exposure to reactive agents
Ensures low particle shedding, preserving product quality
PVDF pleated filters are used not only in liquid systems but also for gas and vapor purification, providing safe and stable operation in high-temperature and high-corrosion environments.
8. Applications in Water Treatment Industry
In the water treatment industry, achieving high purity and reliability is essential for both industrial and municipal systems. PVDF pleated filter cartridges are widely applied in ultrapure water production, wastewater polishing, and drinking water purification because of their strong chemical resistance, excellent durability, and efficient particle retention.
Typical Applications:
Reverse osmosis (RO) prefiltration and post-filtration
Ultrapure water polishing for power plants and laboratories
Desalination plants—for seawater and brackish water treatment
High-purity process water for chemical and electronics industries
Groundwater and tap water clarification
Key Advantages in Water Treatment:
Long service life: PVDF membranes maintain integrity during prolonged operation under variable pressure.
Resistance to oxidizing agents: Withstands chlorine, ozone, and hydrogen peroxide used in disinfection.
Consistent performance: Stable pore structure ensures reproducible filtration quality.
Low extractables: Prevents contamination in sensitive applications like pharmaceutical water systems.
In water treatment systems, PVDF filters are often used as final polishing filters after other depth or carbon filters, ensuring crystal-clear water with minimal microbial and particle content.
9. Applications in Power Generation and Energy Sector
In the power generation and energy industries, maintaining the purity of process fluids—such as cooling water, lubricants, and fuels—is essential for equipment efficiency and longevity. PVDF pleated filter cartridges are well-suited for these operations because they provide high flow rates, temperature resistance, and chemical durability.
Applications Include:
Condensate polishing in thermal power plants
Filtration of turbine lubricants and hydraulic oils
Pre-filtration in RO and DI water systems
Air and vent filtration in power facilities
Hydrogen generation system purification
Benefits:
Thermal stability up to 95°C, ideal for high-temperature water systems
Corrosion resistance, especially in systems using aggressive chemicals
High retention efficiency, protecting sensitive equipment like turbines and membranes
Low maintenance requirements, reducing system downtime
The PVDF pleated design ensures efficient contaminant removal with minimal pressure loss, supporting continuous operation and enhanced system reliability.
10. Applications in Laboratory and Analytical Systems
Laboratory environments require precision, reproducibility, and purity for accurate analytical results. PVDF pleated filter cartridges are used in both liquid and gas filtration within laboratory water systems, reagent preparation, and analytical instrumentation.
Common Laboratory Applications:
Filtration of aqueous reagents, buffers, and biological samples
Analytical water purification (Type I and Type II water systems)
Gas venting in sterile testing environments
Solvent and mobile phase filtration for chromatography (HPLC, GC)
DNA, RNA, and protein sample preparation
Advantages in Analytical Filtration:
Low adsorption: Ensures accurate results in biochemical and molecular analysis.
High chemical compatibility: Works with organic solvents and acids commonly used in labs.
High flow rate and low pressure drop: Suitable for high-throughput filtration systems.
Steam and chemical sterilizable: Compatible with autoclave or SIP cycles.
Because PVDF membranes maintain low extractables and consistent pore size, they help laboratories achieve stable and reliable data, minimizing contamination or analyte loss.
11. Air and Gas Filtration Applications
Hydrophobic PVDF pleated filter cartridges are particularly valuable in gas and vent filtration applications, providing superior hydrophobicity, bacterial retention, and chemical resistance. These features make them ideal for use in sterile air vents, gas sterilization, and compressed air systems.
Typical Applications:
Tank and bioreactor vent filters
Sterile air and gas filtration in fermentation
Compressed air line purification
Autoclave venting and exhaust systems
CO₂ filtration in food and beverage industry
Advantages:
Prevents liquid intrusion due to hydrophobic surface characteristics
Provides sterile air barrier, maintaining product integrity
Excellent particle and bacterial retention (≥0.2 µm)
Chemical inertness, resisting degradation from reactive gases
Long operating life, even under variable humidity and temperature conditions
PVDF gas filters ensure clean, dry, and sterile air supply for sensitive production environments like pharmaceutical filling lines and fermentation tanks.
12. Comparison with Other Pleated Filter Types
To better understand the unique role of PVDF filters, it’s helpful to compare them with other popular filter materials such as PES, PTFE, and Nylon.
| Filter Type | Base Material | Hydrophilicity | Key Strengths | Primary Applications |
|---|---|---|---|---|
| PVDF Pleated Filter | Polyvinylidene Fluoride | Hydrophobic / Hydrophilic | High chemical resistance, low extractables, sterilizable | Pharma, chemical, microelectronics, gas filtration |
| PES Pleated Filter | Polyethersulfone | Hydrophilic | High flow, low protein binding | Biotech, water treatment |
| PTFE Pleated Filter | Polytetrafluoroethylene | Hydrophobic | Ultimate chemical resistance, gas filtration | Air, solvent, and vent filters |
| Nylon Pleated Filter | Nylon 6/66 | Hydrophilic | High mechanical strength, temperature resistance | Food, beverage, and chemical filtration |
From the table, PVDF provides a balance between PTFE’s chemical resistance and PES’s flow efficiency, making it a versatile choice for both liquid and gas filtration systems.
13. Guidelines for Selecting PVDF Pleated Filter Cartridges
Choosing the correct PVDF pleated filter cartridge involves evaluating several factors including application type, fluid characteristics, and operational conditions.
a. Determine the Application Type
Hydrophobic PVDF: Ideal for air, gas, and vent filtration
Hydrophilic PVDF: Designed for aqueous liquids and solvent purification
b. Choose Appropriate Micron Rating
0.1–0.22 µm: Sterile filtration and bacteria removal
0.45 µm: Clarification or prefiltration
1.0–5 µm: Coarse filtration or prefiltration before fine membranes
c. Check Compatibility
Confirm chemical compatibility with acids, bases, solvents, and oxidizers.
Ensure housing materials (PP or PVDF) match your process fluid.
d. Verify Standards & Certifications
FDA CFR Title 21 for food contact safety
USP Class VI for biocompatibility
ISO 9001 / 14001 manufacturing standards
Integrity testing and traceability documentation
e. Evaluate Operational Parameters
Operating temperature: Up to 85–95°C continuous
Differential pressure: Up to 4 bar (forward flow)
Sterilization method: Steam, hot water, or chemical
By following these criteria, users can ensure that their PVDF pleated filter cartridges deliver maximum filtration performance, safety, and durability.
14. Future Trends in PVDF Filtration Technology
As industries move toward higher purity requirements and sustainability goals, PVDF filter technology is evolving in several key directions:
a. Multi-Layer Membrane Design
Advanced PVDF filters are being engineered with dual-layer or gradient pore structures, providing higher dirt-holding capacity and extended lifespan.
b. Integration with Smart Monitoring Systems
IoT-enabled filtration systems are increasingly integrating real-time differential pressure and flow monitoring to optimize replacement schedules.
c. Sustainable Manufacturing
New production techniques are focusing on energy efficiency and solvent-free membrane fabrication, reducing environmental impact.
d. Enhanced Surface Modifications
Surface-treated PVDF membranes with anti-fouling and anti-microbial coatings are being developed for long-term sterile environments.
These innovations are helping manufacturers achieve longer service life, reduced maintenance, and greater environmental responsibility, making PVDF filtration a key technology for the future.
15. Conclusion
PVDF pleated filter cartridges are among the most versatile and durable filtration solutions available today. Their unique combination of hydrophobicity, chemical resistance, thermal stability, and purity makes them indispensable across a wide range of industries—including pharmaceuticals, food and beverage, microelectronics, chemicals, water treatment, and power generation.
Whether used for liquid purification, air venting, or gas sterilization, PVDF filters consistently deliver exceptional performance, extended service life, and regulatory compliance. With ongoing advancements in membrane materials and smart filtration systems, PVDF pleated filter cartridges will continue to play a vital role in ensuring process integrity, product quality, and operational efficiency worldwide.
