Dairy Processing Filter Cartridges for Milk Filtration System
INTRODUCTION
In Dairy Processing Industry, especially in Milk processing, filtration plays a critical role in maintaining product quality, microbial safety, and production efficiency. Different filter cartridges are used at various stages of the dairy process, including raw milk treatment, ingredient filtration, sterile filtration, and utilities such as water and compressed air.
Below is a detailed explanation of the main filter cartridges used in milk processing and the key considerations for each stage.
Filter Cartridges Used in Dairy Processing – Milk Filtration
1. Raw Milk Pre-Filtration
Recommended Filter Cartridges
Filtration Purpose
Raw milk transported from farms may contain:
Sediment
Straw
Hair
Dust
Feed particles
These filters act as coarse pre-filters before pasteurization.
Typical Filtration Rating
25 μm – 100 μm
Key Considerations
High Dirt Holding Capacity
Raw milk contains relatively high suspended solids, so filters must have strong contaminant retention.
Food-grade Materials
Filter materials should comply with FDA Food Contact Regulations or similar standards.
Low Pressure Drop
To avoid affecting milk transfer pumps.
2. Milk Clarification / Fine Filtration
Recommended Filter Cartridges
Glass Fiber Filter Cartridge
Filtration Purpose
After initial treatment and separation, filtration helps remove:
Fine suspended particles
Protein aggregates
Fat residues
Typical Filtration Rating
5 μm – 20 μm
Key Considerations
Large Filtration Area
Pleated filters provide larger filtration surface area and longer service life.
Low Protein Adsorption
Filter media must minimize adsorption of milk proteins and fats.
Stable Structure
Filters must withstand warm milk temperatures during processing.
3. Sterile Filtration for Dairy Products
Used before packaging for products such as:
UHT milk
flavored milk
yogurt drinks
Recommended Filter Cartridges
Filtration Purpose
Remove:
bacteria
yeast
microbial contaminants
Typical Filtration Rating
0.2 μm – 0.45 μm
Key Considerations
High Bacteria Removal Efficiency
Filters must have validated microbial retention performance.
Integrity Testable
Membrane filters should support integrity testing such as bubble point testing.
Thermal Resistance
Filters should tolerate steam sterilization (SIP) used in hygienic dairy systems.
4. Ingredient Filtration
Milk processing often uses ingredients such as:
sugar syrup
flavor additives
stabilizers
Recommended Filter Cartridges
Nylon Membrane Filter Cartridge
PES Membrane Filter Cartridge
Typical Filtration Rating
0.45 μm – 5 μm
Key Considerations
🍬 Chemical Compatibility
Ingredients such as acids and flavor compounds require chemically resistant membranes.
🍬 Consistent Flow Rate
To ensure uniform mixing during production.
5. Process Water Filtration
Water used in dairy plants includes:
ingredient water
cleaning water
equipment washing water
Recommended Filter Cartridges
High Flow Filter Cartridge
PP Pleated Filter Cartridge
Typical Filtration Rating
1 μm – 10 μm
Key Considerations
💧 High Flow Capacity
Large dairy factories require high-flow filtration to support continuous production.
💧 Low Maintenance
Long service life reduces plant downtime.
6. Compressed Air & Gas Filtration
Compressed air is used for:
pneumatic control systems
aseptic packaging
product transfer
Recommended Filter Cartridges
Typical Filtration Rating
0.01 μm – 0.2 μm
Key Considerations
🌬 Hydrophobic Membrane
Prevents moisture penetration.
🌬 Sterile Gas Filtration
Ensures sterile air contact with milk products.

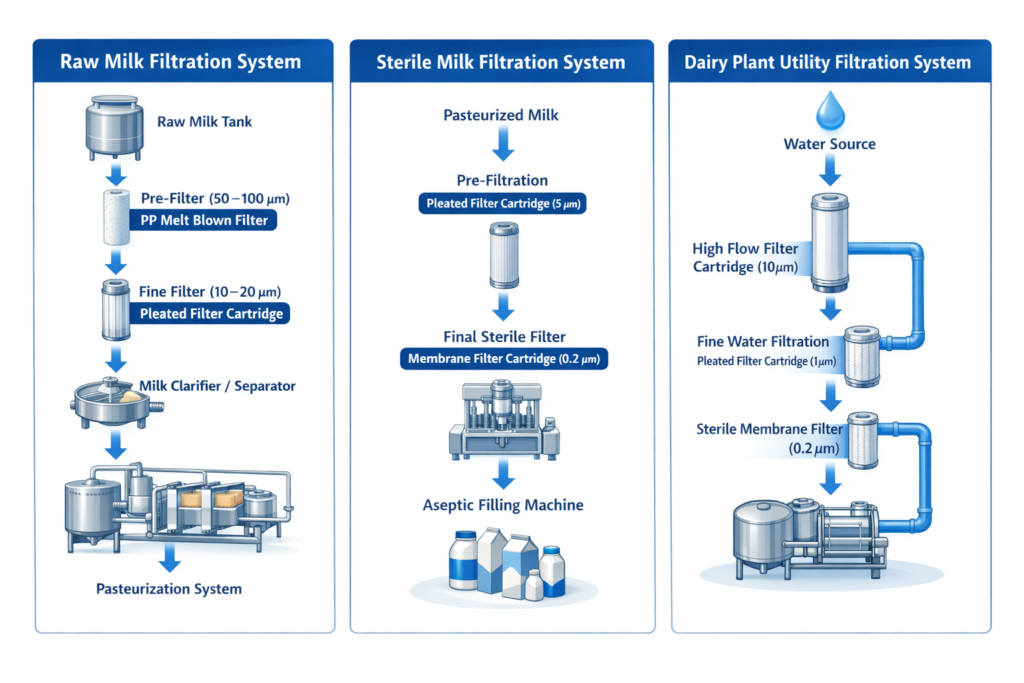

Summary of Filter Cartridge Selection for Milk Processing
| Process Stage | Recommended Filter Cartridge | Micron Rating |
|---|---|---|
| Raw Milk Filtration | PP Melt Blown / String Wound | 25–100 μm |
| Milk Clarification | PP Pleated / Glass Fiber | 5–20 μm |
| Sterile Filtration | PES / PVDF Membrane | 0.2–0.45 μm |
| Ingredient Filtration | Nylon / PES Membrane | 0.45–5 μm |
| Process Water | High Flow / PP Pleated | 1–10 μm |
| Compressed Air | PTFE Membrane | 0.01–0.2 μm |
✅ Key Takeaway
Effective filtration in milk processing requires selecting the right filter cartridge type, micron rating, and material compatibility for each stage. Proper filtration not only protects dairy product quality but also ensures compliance with food safety standards such as FDA Food Safety Modernization Act and European Food Safety Authority guidelines.
FAQ
1. What filter cartridges are used in dairy processing?
Common filter cartridges used in dairy processing include PP Melt Blown Filter Cartridge, PP Pleated Filter Cartridge, PES Membrane Filter Cartridge, and PTFE Membrane Filter Cartridge. These filters remove particles, microorganisms, and contaminants during milk processing.
2. Why is filtration important in milk processing?
Filtration removes suspended solids, microorganisms, and impurities from milk. It helps improve product quality, food safety, and shelf life in dairy processing.
3. What micron filter is used for milk filtration?
Milk filtration typically uses:
25–100 μm for raw milk pre-filtration
5–20 μm for clarification
0.2–0.45 μm for sterile filtration
The exact rating depends on the production stage.
4. What is sterile filtration in dairy processing?
Sterile filtration removes microorganisms such as bacteria and yeast from milk before packaging using membrane filter cartridges with 0.2 μm pore size.
5. Which filter cartridge is best for milk clarification?
A PP Pleated Filter Cartridge is commonly used because it offers large filtration area, low pressure drop, and long service life.
6. Are filter cartridges used in dairy processing food grade?
Yes. Filter cartridges used in dairy plants must comply with food safety standards such as FDA Food Contact Regulations and European Food Safety Authority requirements.
7. How often should dairy filter cartridges be replaced?
Replacement frequency depends on:
filtration load
production volume
pressure drop increase
Typically filters are replaced every 1–4 weeks in continuous dairy production systems.
8. What materials are used in dairy filter cartridges?
Common materials include:
polypropylene (PP)
polyethersulfone (PES)
polyvinylidene fluoride (PVDF)
polytetrafluoroethylene (PTFE)
These materials provide chemical compatibility and food safety compliance.
9. Can pleated filter cartridges improve dairy filtration efficiency?
Yes. Pleated filter cartridges increase filtration surface area, resulting in:
higher flow rate
longer service life
reduced filter replacement frequency.
10. What filtration systems are used in dairy plants?
Typical dairy filtration systems include:
raw milk filtration
ingredient filtration
sterile milk filtration
process water filtration
compressed air filtration
These systems ensure safe and hygienic dairy production.
