Filter Cartridge for Acid Filtration Systems: Types of Filters and How to Optimize Production
INTRODUCTION
Acid filtration is widely used in industries such as chemical processing, metal finishing, electronics manufacturing, pharmaceuticals, and water treatment. Many industrial acids contain suspended particles, corrosion residues, catalyst particles, or process impurities that must be removed to ensure product purity and protect equipment.
Selecting the correct filter cartridge for acid filtration systems is essential because acids can be highly corrosive and may damage incompatible filtration materials. In addition to choosing the proper filter type, optimizing the filtration process can significantly improve production efficiency, reduce downtime, and lower operating costs.
This article explains which filter cartridges are commonly used for acid filtration and how to optimize the filtration process in industrial production systems.
Common Acids Used in Industrial Filtration Systems
Acid filtration systems are typically used to filter the following chemicals:
Sulfuric acid
Hydrochloric acid
Nitric acid
Phosphoric acid
Hydrofluoric acid
Organic acids
These acids may contain solid particles, metal ions, or process residues that must be removed during production or recycling processes.
Main Applications of Acid Filtration
Acid filtration systems are commonly used in the following industrial processes:
Chemical Manufacturing
Removing catalyst residues and suspended solids in acid-based reactions.
Metal Surface Treatment
Filtering acids used in pickling, etching, and electroplating processes.
Semiconductor Manufacturing
Filtering high-purity acids used in wafer cleaning and etching processes.
Battery Production
Purifying sulfuric acid used in battery manufacturing.
Pharmaceutical Production
Ensuring acid solutions meet strict purity requirements.
Common Filter Cartridges Used for Acid Filtration
Because acids are chemically aggressive, only materials with strong chemical resistance can be used in these filtration systems.
The most commonly used filter cartridges include the following.
1. PTFE Filter Cartridge
PTFE (Polytetrafluoroethylene) is one of the most chemically resistant filtration materials available.
Advantages
Excellent resistance to strong acids and solvents
Hydrophobic membrane suitable for aggressive chemicals
High temperature resistance
Long service life
Typical Applications
Strong acid filtration
Semiconductor chemical filtration
High purity chemical filtration
Typical Filtration Rating
0.1 μm
0.2 μm
0.45 μm
1 μm
PTFE filter cartridges are often used when high chemical compatibility and high filtration precision are required.
2. PVDF Filter Cartridge
PVDF (Polyvinylidene fluoride) offers excellent chemical compatibility and high mechanical strength.
Advantages
Strong resistance to acids and oxidizing chemicals
Good thermal stability
Low extractables
Suitable for high-purity filtration
Typical Applications
Semiconductor acid filtration
Chemical processing filtration
High purity acid systems
Typical Filtration Rating
0.1 μm – 10 μm
3. Polypropylene (PP) Pleated Filter Cartridge
Polypropylene filters are widely used in industrial acid filtration systems because of their good chemical resistance and cost-effectiveness.
Advantages
Good compatibility with many acids
High dirt-holding capacity
Large filtration surface area
Economical for large-scale production
Typical Applications
Acid solution clarification
Chemical production filtration
Battery acid filtration
Typical Filtration Rating
1 μm
5 μm
10 μm
25 μm
4. Glass Fiber Filter Cartridge
Glass fiber filter cartridges are often used for high-flow filtration in chemical processes.
Advantages
High flow capacity
High dirt holding capacity
Good resistance to many acids
Typical Applications
Chemical processing
Industrial acid filtration
Pre-filtration systems
Typical Filtration Rating
1 μm – 10 μm
Recommended Filter Materials for Different Acids
| Acid Type | Recommended Filter Material |
|---|---|
| Sulfuric acid | PP, PVDF |
| Hydrochloric acid | PP, PTFE |
| Nitric acid | PVDF, PTFE |
| Phosphoric acid | PP |
| Hydrofluoric acid | PTFE |
| Organic acids | PP, PVDF |
Selecting the proper filter material ensures chemical compatibility and extends filter life.

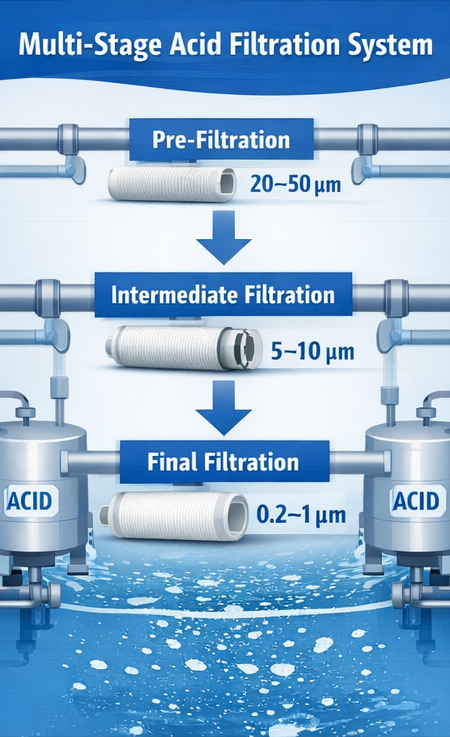

Multi-Stage Acid Filtration System
Many industrial systems use multi-stage filtration to improve filtration efficiency and extend the life of fine filters.
A typical configuration may include:
| Filtration Stage | Filter Type | Micron Rating |
|---|---|---|
| Pre-filtration | Melt blown filter cartridge | 20–50 μm |
| Intermediate filtration | PP pleated filter cartridge | 5–10 μm |
| Final filtration | PTFE or PVDF filter cartridge | 0.2–1 μm |
This staged filtration approach removes large particles first and protects the high-precision final filters.
How to Optimize Acid Filtration Production
Optimizing an acid filtration system can greatly improve operational efficiency and reduce filtration costs.
Several strategies are commonly used in industrial production.
1. Use Multi-Stage Filtration
Using multiple filtration stages prevents premature clogging of fine filters.
Benefits include:
Longer filter life
Lower replacement frequency
Reduced operating costs
Pre-filtration removes larger particles before the liquid reaches the final precision filters.
2. Select High Surface Area Filters
Filters with larger filtration areas provide higher flow rates and lower pressure drop.
Pleated filter cartridges are particularly effective because their folded structure increases the filtration surface area significantly.
This improves throughput and reduces pressure loss.
3. Choose Chemical-Resistant Materials
Acid compatibility is critical for safe and reliable operation.
Selecting the correct materials helps:
Prevent filter degradation
Avoid contamination
Increase filter service life
Materials such as PTFE, PVDF, and polypropylene are commonly used due to their chemical stability.
4. Optimize Filtration Precision
Choosing an unnecessarily fine filtration rating can lead to frequent clogging and higher costs.
Instead, filtration precision should match the actual particle removal requirements of the process.
For example:
Pre-filtration: 20–50 μm
Process filtration: 5–10 μm
Final purification: 0.2–1 μm
5. Improve System Flow Design
Proper filtration system design can improve overall performance.
Recommended practices include:
Maintaining stable pressure conditions
Avoiding excessive flow rates
Ensuring uniform flow distribution across filter cartridges
These measures prevent uneven loading and extend filter life.
6. Monitor Filter Performance
Regular monitoring of pressure differential across filters helps determine when filters need replacement.
Installing pressure gauges or automated monitoring systems allows operators to:
Prevent sudden system shutdowns
Maintain stable filtration performance
Schedule maintenance more effectively
Conclusion
Acid filtration systems play a critical role in many industrial processes, including chemical manufacturing, semiconductor production, metal processing, and battery manufacturing.
Common filter cartridges used in acid filtration include:
PTFE filter cartridges
PVDF filter cartridges
PP pleated filter cartridges
Glass fiber filter cartridges
Each filter type offers specific advantages depending on the acid type, filtration precision, and process requirements.
By implementing multi-stage filtration, selecting chemically compatible materials, optimizing filtration precision, and improving system design, manufacturers can significantly enhance filtration efficiency, extend filter life, and reduce operating costs.
Proper filtration not only improves product quality but also ensures stable and safe industrial production.
