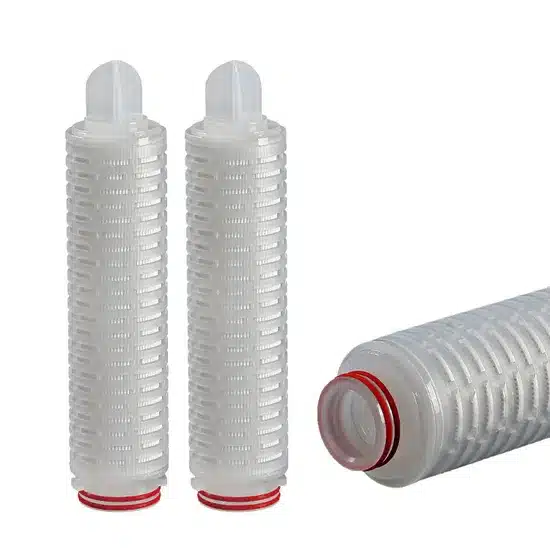

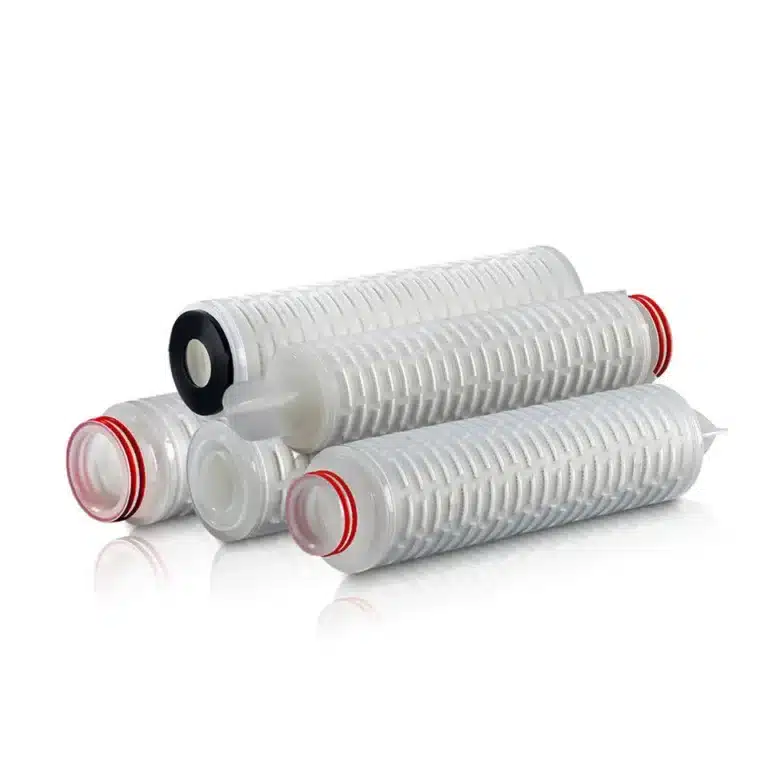

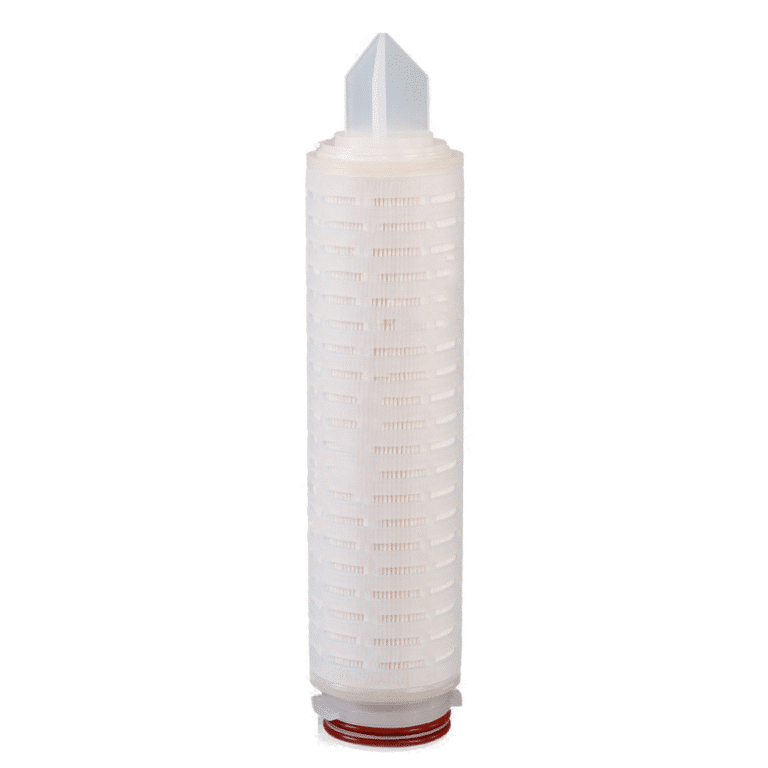

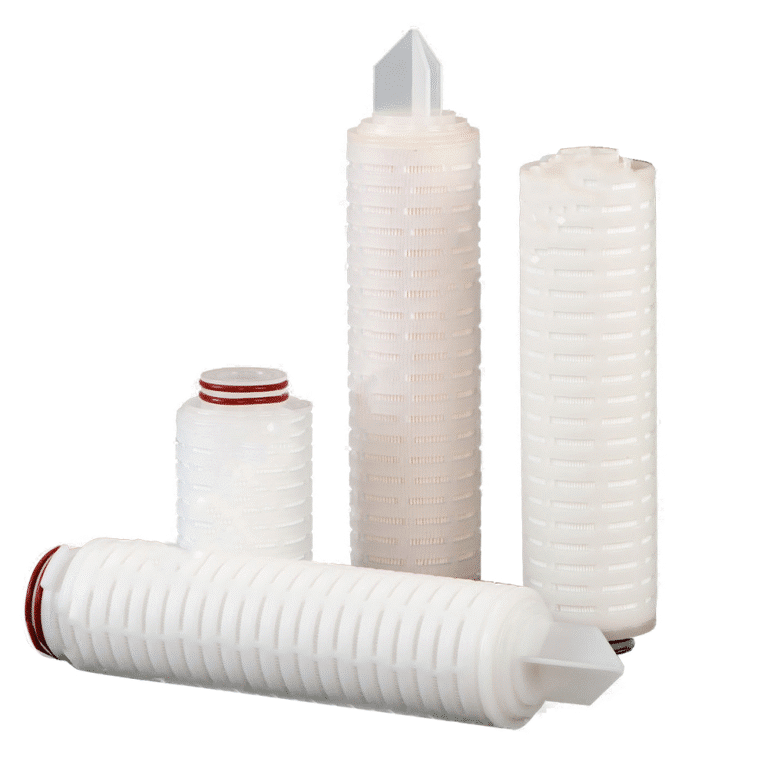

PVDF (Polyvinylidene fluoride) pleated filter cartridges are high-performance filtration elements designed for applications requiring exceptional chemical resistance, high thermal stability, and superior mechanical strength. These cartridges are widely used in industries such as pharmaceutical, biotechnology, chemical processing, food and beverage, and ultrapure water treatment.
Made from hydrophobic or hydrophilic PVDF membrane and polypropylene components, PVDF pleated cartridges offer excellent resistance to aggressive chemicals, including acids, bases, and solvents. Their pleated design provides high filtration surface area, ensuring long service life and consistent flow rates.
Key Features of PVDF Pleated Filter Cartridge
✅Excellent Chemical Resistance: Suitable for harsh chemicals, acids, and bases.
✅Thermal Stability: Can withstand temperatures up to 90–120°C depending on construction.
✅Low Extractables: Ensures purity of filtrate, ideal for critical applications.
✅High Flow Rate: Pleated structure maximizes surface area and flow efficiency.
✅Wide Compatibility: Compatible with most sterilization methods including autoclaving and hot water.
✅Hydrophilic & Hydrophobic Options: Tailored for different filtration needs (e.g., aqueous vs. gas filtration).
✅Wide Micron Range: Available from 0.1 μm to 10 μm.
✅FDA-Compliant Materials: Suitable for food, beverage, and pharmaceutical use.
Industry | Application Example | Chemicals Involved |
---|---|---|
Pharmaceuticals | API solvent filtration, sterile buffers | Ethanol, HCl, H₂O₂ |
Chemical Processing | Acids & oxidant filtration | HNO₃, NaOCl, KMnO₄ |
Microelectronics | Ultra-pure water, wet etching chemicals | HF (diluted), H₂SO₄, NH₄OH |
Food & Beverage | CIP fluid filtration, preservative removal | NaOH, acetic acid |
Laboratory | Sample prep and purification | Organic solvents, alcohols |
PVDF Membrane filter cartridges are used across a wide spectrum of industries where chemical compatibility and high purity are essential:
Final filtration of active pharmaceutical ingredients (APIs)
Sterile filtration of liquid drugs
Solvent filtration
Wine and beer clarification
Dairy product filtration
Syrup, soft drink, and bottled water purification
Ultra-pure water (UPW) production
Photoresist and etching chemical filtration
Corrosive fluid filtration (acids, oxidants)
Solvent-based process filtration
Sterile gas filtration
Sample preparation
We offer a variety of lengths and end cap types of PVDF Pleated Filter Cartridge:
Lengths: 10″, 20″, 30″, 40″
End Caps: DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin
These standard configurations ensure compatibility with most filter housings used globally.
Parameter | Specification |
---|---|
Membrane Material | PVDF (Hydrophilic or Hydrophobic) |
Support Layers | Polypropylene (PP) |
End Caps / Core / Cage | Polypropylene or optional PVDF |
Filtration Ratings | 0.1, 0.22, 0.45, 1, 3, 5, 10 μm |
Cartridge Lengths | 5″, 10″, 20″, 30″, 40″ |
Outer Diameter | 68mm or 69mm |
Inner Diameter | 28mm |
Operating Temperature | Up to 90–120°C |
Maximum Differential Pressure | 4.2 bar @ 25°C, 2.4 bar @ 80°C |
Sterilization | Autoclave (121°C for 30 min), hot water |
Connection Types | DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin |
Gasket / O-ring Materials | Silicone, EPDM, Viton, Teflon-encapsulated |
Our PP Pleated Filter Cartridges cartridges are:
Constructed with FDA-compliant materials
Tested under strict quality control standards
Available for OEM branding and private label packaging
If you’re looking for a durable, cost-effective, and efficient liquid filtration solution, our PP pleated filter cartridges are an excellent choice.
PVDF offers exceptional chemical resistance compared to PES, Nylon, or PTFE membranes. It can filter aggressive acids (like nitric, hydrochloric) and bases (like sodium hydroxide) without degradation.
PVDF membranes maintain performance even under elevated temperatures. This makes them suitable for hot chemical processes or autoclave sterilization.
These cartridges are manufactured in cleanroom environments and exhibit low protein binding and minimal extractables, ensuring that filtrate purity is not compromised—critical in pharmaceutical and electronic applications.
The pleated construction provides high dirt holding capacity and flow rates, reducing maintenance frequency and operational downtime.
When selecting a PVDF pleated cartridge, consider the following factors:
Filtration Pore Size: Choose 0.22 μm or 0.45 μm for sterile filtration; 1–10 μm for prefiltration or particulate removal.
Fluid Characteristics: Is the fluid acidic, basic, or contains solvents?
Temperature Requirements: Ensure the cartridge supports your system’s temperature.
System Configuration: Match end caps and gasket materials with your housing.
Need help selecting the right filter? Contact our team for technical support.
Always pre-flush the cartridge with clean water or compatible solvent before use.
Check the housing seal to prevent leakage.
Ensure compatibility of O-ring material with your filtration fluid.
PVDF cartridges can be sanitized with hot water or chemical agents. However, actual reusability depends on application, contaminant type, and cleaning protocol.
Store in a clean, dry environment away from direct sunlight. Avoid freezing.
FDA CFR Title 21 compliant materials
ISO 9001:2015 certified manufacturing
USP Class VI tested
Bacterial retention validated (for 0.22μm hydrophilic PVDF)
Feature | PVDF | PES | PTFE | Nylon |
---|---|---|---|---|
Chemical Resistance | Excellent | Good | Excellent | Moderate |
Thermal Stability | High | Moderate | High | Moderate |
Hydrophilicity | Available both | Hydrophilic | Hydrophobic | Hydrophilic |
Protein Binding | Low | Very Low | Low | High |
Typical Use | Chemicals, solvents | Pharma, biotech | Air/gas, aggressive fluids | Water filtration |
Yes, if used in compatible processes and properly cleaned, PVDF cartridges can be reused. However, always validate performance post-cleaning.
Absolutely. Hydrophilic PVDF filters are ideal for sterilizing aqueous solutions and withstand autoclaving.
Hydrophobic PVDF is used for gas or solvent filtration, while hydrophilic PVDF is pre-treated for aqueous solutions.
Yes, particularly the 0.22 μm-rated hydrophilic versions are validated for bacterial retention.
Strict quality control and ISO-certified manufacturing
Customizable designs (end caps, lengths, O-rings)
In-stock items for fast delivery
Competitive factory-direct pricing
Full technical support and OEM services available
Whether you’re filtering solvents in a chemical plant or sterilizing injectable solutions, our PVDF pleated cartridges deliver uncompromised performance and safety.
Product Code | Length | Micron Rating | End Cap Type | Gasket Material |
---|---|---|---|---|
PVDFP-10-022-222F | 10″ | 0.22 μm | 222 Flat | Silicone |
PVDFP-20-045-226F | 20″ | 0.45 μm | 226 Flat | EPDM |
PVDFP-30-010-DOE | 30″ | 1.0 μm | DOE | Viton |
For custom sizes or bulk order pricing, please contact us or request a quote.
